[railguy]

Like many other simmers, I've become a real fan of Erick Cantu's model creations, both freeware and payware. In addition to all of the NAVS car offerings, I really like the NAVX GP-9 locomotives. However, I like running those locomotives as "leasers" and private switch engines (grain elevators, etc.) in the "modern era." In that regard, would it be possible for Freight Anim ditchlights to be made for this model for those of us (like me) who are totally devoid of modeling skills? I know that there has been some discussion about this for other models out there, but not for the NAVX models. Many thanks in advance if this might be possible.

[superheatedsteam]

Do you have any drawings, photos and dimensions that would assist in the modelling of those ditch lights?

Also, are you prepared to paint them?

I need to create a set of ditch lights for a SD40-2 and a SD70ACe so if someone can help out with the reference material I can model the objects.

Cheers,

Marek.

[pwillard]

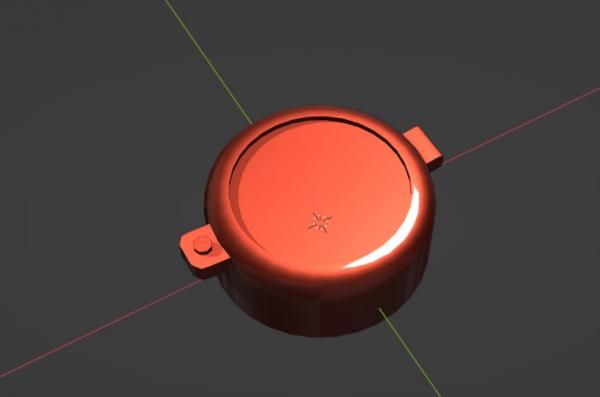

Are you looking for something like this?

The standard ditch light is like 10-11 inches in diameter...

Though I will admit, it looks a bit big here...

Attached thumbnail(s)

•
•

[steved]

They use the same lamp as headlights.
So however big those are.

Randy

[Jonatan]

Since Open Rails allows assumingly unlimited number of freight anims, ditch lights could be separately modelled and added via freight anim shapes with the nessecery .eng file mods to make them work.

Modelling one standard ditch light shape will allow for placing two or more of them via this way, on any model that needs them.

[pwillard]

Very True. Making *parts* might be helpful.

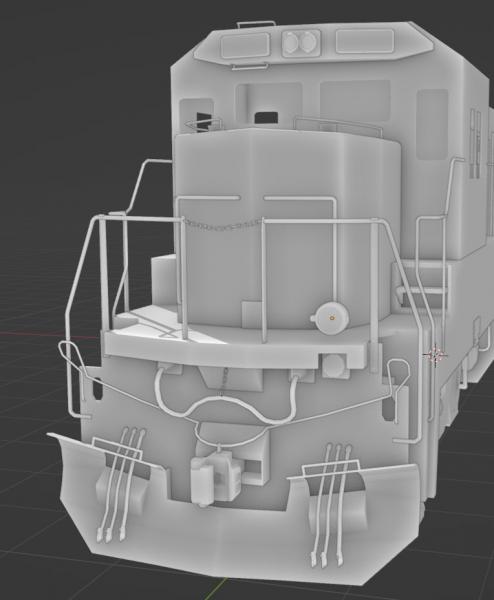

And honest, I think my actual headlights are wee bit too small. But... the ditch lights look bigger on an sample picture too...

Hmmm...

I'm not 100% sure how to create a model specifically for FA but there is always a first time.

Attached thumbnail(s)

•

[railguy]

I was thinking specifically of the capability of OR to accept multiple FA's as the method to place ditchlights on locomotives. One of my little "just for me" projects is to make fictional lease locomotives for my fleet, using older power with modern ditchlights. Sort of a fictional "what if that had happened" scenario.

[ErickC]

I don't have capacity to make any ditchlight models at the moment, but someone else might. There's no technical reason why more freight shapes can't be added. Just be mindful of the visibility parameters if anything might be visible from the cab.

[pwillard]

Its probably even a good project for someone trying to learn Blender. Simple enough that you could do it as a first model. If nobody raises their hand, I could do it.

---

I recall seeing a lot of dust flying a while back about FA's being misused to add attachments for extra details when the original intent was to dynamically modify things like visible loads and coal supplies. They were upset that it shouldn't be used for stuff like extra details... but that ship has sailed I think. Even so, would it make any sense to have a simpler object reference like "Object Attachment" that didn't include the ability to animate and have *that* be used for extra attachments? I dunno, thinking out loud I guess. It's quite clear that a modeler is never going to be able to capture *all* of the variations in a particular model when they release their work.

[steved]

I think it's a great idea.
Instead of building several variations one only has to make a stock model and then everybody can add their own railroad/era specific add ons.
I'll build a ditch light but it'll have to be sketchup. Shouldn't make a difference to the user.

Randy

[eric from trainsim]

What Pete built and showed earlier looks perfect. All it needs is a bracket.

In reality, only one shapefile model of a ditchlight is needed, with perhaps the ability to alpha out or delete the bracket for locomotives that have them welded directly onto the frame or body.

Having two FA's reference to the same shape won't break anything, and the lighting code won't care.

[pwillard]

Quote

In reality, only one shapefile model of a ditchlight is needed, with perhaps the ability to alpha out or delete the bracket for locomotives that have them welded directly onto the frame or body.<br style="color: rgb(28, 40, 55); font-size: 13px; background-color: rgb(250, 251, 252);">
Having two FA's reference to the same shape won't break anything, and the lighting code won't care.

Yeah, I was thinking that as well.

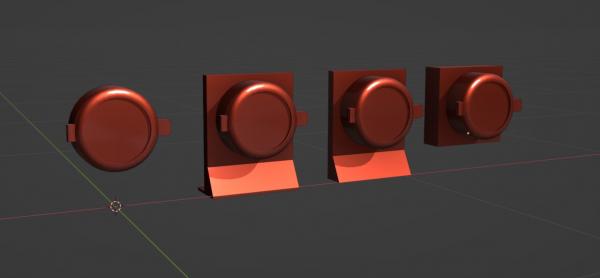

Anyway, I was thinking of 4 options...



=====

Also...

I'm sitting here chuckling... it should be a group project. Meaning... everyone should try it. more the merrier and all that. (And you know... I need to meet my monthly conversion to Blender quota.) ;-P

Attached thumbnail(s)

•

[pwillard]

Rendered Example: I probably need to do better alignment on the mapping though.( Which i did do after this). One thought though, these will all need to be placed at 0,0,0 location so offsetting to the correct location is entirely up to the user.
My linkhttps://i.imgur.com/MApYbkd.png
If anyone wants to see where I am with this experiment...

Not sure my link works... but its also available in the DOWNLOADS section

You can look at the LINK in this post No guarantees these are 100% correct yet...

[eric from trainsim]

That's a perfect solution.

[pwillard]

They still might be a little too big.
