[James Ross]

Okay, so as far as I can tell OR headlights are behaving correctly per the table I listed in post #2 and per the MSTSBin manual. E.g. Headlight(6) is visible if the headlight is off or bright and hidden if the headlight is dim.

So apart from Headlight(7) not being implemented, I can't see any issues here.

Edit: Unless the MSTSBin manual is wrong, of course.

[rosssweet]

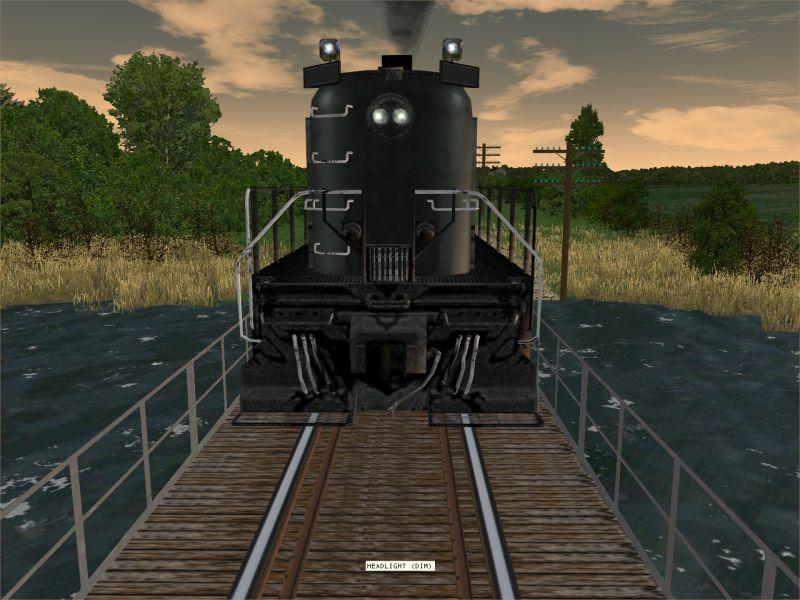

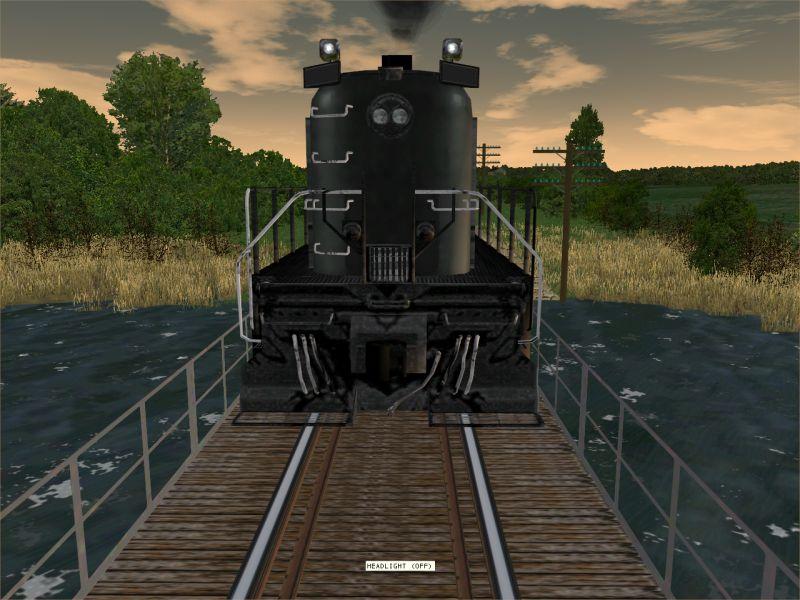

Headlight (6) set on Top Marker Lights

Should be, and works in MSTS.

key “h” is not pressed = ON

key “h” is one time pressed = ON

key “h” is two times pressed = OFF

Ross

Attached thumbnail(s)

•
•
•

[rosssweet]

Headlight (7)

Should be, and works in MSTS.

key “h” is not pressed = OFF

key “h” is one time pressed = ON

key “h” is two times pressed = ON

Cheers Ross

[Genma Saotome]

James Ross, on 01 February 2015 - 05:08 AM, said:

Are you asking about the headlight() condition in engine/wagon lighting sections? Open Rails supports the following values:

• 0: Ignore

• 1: Off

• 2: Dim

• 3: Bright

• 4: Dim or bright (MSTSBin)

• 5: Off or dim (MSTSBin)

• 6: Off or bright (MSTSBin)

There's one more value, which MSTSBin labels as "DimBright", which we don't implement because the MSTSBin manual isn't clear on how it works.

As far as I can see, all of the values listed above work in Open Rails. If you don't think they are, you need to very clearly specify which cases are not working - it is not possible to tell from your post what you are actually testing.

James, looking at this thread it has become apparent to me that there are two different things going on in this one parameter and that is:

• The starting condition of the lamp.

• The sequence of keystrokes.

IMO there is no sense trying to change anything before 1.0 but longer term it would make sense to change the parameter list in Light() to separate these two data with the keystroke sequence being relevant when the player is in control (several possible combinations) and the starting condition being relevant to both AI and player controlled locomotives (probably being off, dim, and full). I think it would make sense to call the later parameter Headlight() or HeadlightAtStart() if you want and then something entirely new for the other parameter name.

For AI trains Headlight() would be the only in-game setting. For player's trains Headlight() will start as specified and then whatever Keystroke set was specified would be granted to the player to execute as needed.

[James Ross]

rosssweet, on 04 February 2015 - 07:00 PM, said:

Headlight (6) set on Top Marker Lights

Should be, and works in MSTS.

key “h” is not pressed = ON

key “h” is one time pressed = ON

key “h” is two times pressed = OFF

Ross

If that is a Headlight(6) working correctly then the MSTSBin manual is wrong. However, I am concerned that something else is wrong or interfering here because you said originally that Headlight(1) doesn't work - and that's a basic MSTS value which I confirmed works as documented: it's only visible when the headlight is off.

I'm going to run my test locomotive in MSTSBin at the weekend and see what I find, until then there's no point doing anything.

Genma Saotome, on 04 February 2015 - 07:37 PM, said:

For AI trains Headlight() would be the only in-game setting. For player's trains Headlight() will start as specified and then whatever Keystroke set was specified would be granted to the player to execute as needed.

I suspect we could get away with making AI have the headlight off during the day and bright during night, in the mean time. Not sure what MSTS does but we should probably stop having AI headlights on during the day by default. :rotfl:

[gpz]

James Ross, on 05 February 2015 - 02:54 AM, said:

I suspect we could get away with making AI have the headlight off during the day and bright during night, in the mean time. Not sure what MSTS does but we should probably stop having AI headlights on during the day by default. :rotfl:

In Hungary the headlight must be switched on at daylight too, so there might be a option added for this.

[rosssweet]

Hi James,
Looks like we are on the same page now.

Checked Headlights, (0) to (4) correct. Except

Headlight (5)
Should be, and works in MSTS.

key “h” is not pressed = ON

key “h” is one time pressed = OFF

key “h” is two times pressed = ON

In OR X2833 not matching MSTS

key “h” is not pressed = ON

key “h” is one time pressed = ON

key “h” is two times pressed = OFF



Headlight (6)
Should be, and works in MSTS.

key “h” is not pressed = ON

key “h” is one time pressed = ON

key “h” is two times pressed = OFF

In OR X2833 not matching MSTS

key “h” is not pressed = ON

key “h” is one time pressed = OFF

key “h” is two times pressed = ON



Headlight (7)
Should be, and works in MSTS.

key “h” is not pressed = OFF

key “h” is one time pressed = ON

key “h” is two times pressed = ON

In OR X2833 not matching MSTS

key “h” is not pressed = OFF

key “h” is one time pressed = OFF

key “h” is two times pressed = OFF


Thanks a lot, Cheers Ross

James Ross, on 05 February 2015 - 02:54 AM, said:

If that is a Headlight(6) working correctly then the MSTSBin manual is wrong. However, I am concerned that something else is wrong or interfering here because you said originally that Headlight(1) doesn't work - and that's a basic MSTS value which I confirmed works as documented: it's only visible when the headlight is off.
I'm going to run my test locomotive in MSTSBin at the weekend and see what I find, until then there's no point doing anything.

[James Ross]

gpz, on 05 February 2015 - 03:37 AM, said:

In Hungary the headlight must be switched on at daylight too, so there might be a option added for this.

Hmm, maybe. I'll see if I can see what MSTS(Bin) does, so we can default to that for MSTS content.

rosssweet, on 05 February 2015 - 04:15 AM, said:

Checked Headlights, (0) to (4) correct. Except

Headlight (5)
Headlight (6)

Okay, it looks like 5 and 6 are backwards because the MSTSBin manual is wrong:

Quote

Headlight (4) = Headlight (2) + Headlight (3) = Dim + Bright - lights will be on at both state.
Headlight (5) = Headlight (1) + Headlight (2) = Off + Dim
Headlight (6) = Headlight (1) + Headlight (3) = Off + Bright

I'll test this out to confirm and we can then update Open Rails to match.

[Genma Saotome]

gpz, on 05 February 2015 - 03:37 AM, said:

In Hungary the headlight must be switched on at daylight too, so there might be a option added for this.

There is already a parameter in Light() that controls when and surprise surprise! it is called TimeOfDay().

As a side note, AFAIK, most railroads in the US did not require headlights to be on until the arrival of diesel road locomotives... and not even at the start but a bit later I don't know if the change was mandated by the government of the railroads figured out that they had been relying on a plume of steam exhaust as a warning and that wasn't there anymore.

[gpz]

Genma Saotome, on 05 February 2015 - 11:33 AM, said:

As a side note, AFAIK, most railroads in the US did not require headlights to be on until the arrival of diesel road locomotives... and not even at the start but a bit later I don't know if the change was mandated by the government of the railroads figured out that they had been relying on a plume of steam exhaust as a warning and that wasn't there anymore.

It is a rule here for trains and also for all road cars outside cities to have headlights always on while moving, even at summer noon in sunshine. By statistics it considerably reduced the number of accidents, at least in case of cars. :shock6:
