Cabview controls for generic items
#31
Posted 03 June 2022 - 04:07 AM
Hello! a question regarding the topic.
Are the names ORTS_ITEM1TWOSTATE type or ORTSITEM1TWOSTATE type without underscore?
Lately I am having problems. If I type ORTSITEM1TWOSTATE in TSM, pressing Anim crashes the program, but not if I type ORTS_ITEM1TWOSTATE.
But after that, the movement of the object is continuous, instead of running in two steps.
Are the names ORTS_ITEM1TWOSTATE type or ORTSITEM1TWOSTATE type without underscore?
Lately I am having problems. If I type ORTSITEM1TWOSTATE in TSM, pressing Anim crashes the program, but not if I type ORTS_ITEM1TWOSTATE.
But after that, the movement of the object is continuous, instead of running in two steps.
#33
Posted 18 June 2022 - 02:41 PM
Csantucci, on 23 March 2022 - 01:00 AM, said:
Hi trainagrandevitesse,
there is already a specific 3D cab control for animating wipers, which is EXTERNALWIPERS.
there is already a specific 3D cab control for animating wipers, which is EXTERNALWIPERS.
Hello,
it's all good, I was able to make 2 different wipers for my 3D cabin:
1 wiper
"ORTS_ITEM1CONTINUOUS"
1 wiper
"EXTERNALWIPERS"
I had a problem with the animation being too slow.
Thanks to "superheatedsteam" and "mrmosky"
on the Cab3D post, I solved my problem.
Good-bye
#34
Posted 06 July 2022 - 01:41 PM
Hello!
I'm still having problems with these elements, but the funny thing is that in other models I have managed to make it work.
Although I check one and a thousand times where the fault may be, comparing it with the model that works, the result is that the ORTS_ITEM1TWOSTATE:0 element present in the 3D model of the vehicle, moves continuously, at the rate of vehicle speed.
Does it have to do with the fact that in the same vehicle there are fans with the name Rod01 and Rod02? Because that's the only thing I can think of...
Thanks!
I'm still having problems with these elements, but the funny thing is that in other models I have managed to make it work.
Although I check one and a thousand times where the fault may be, comparing it with the model that works, the result is that the ORTS_ITEM1TWOSTATE:0 element present in the 3D model of the vehicle, moves continuously, at the rate of vehicle speed.
Does it have to do with the fact that in the same vehicle there are fans with the name Rod01 and Rod02? Because that's the only thing I can think of...
Thanks!
#35
Posted 06 July 2022 - 01:51 PM
I answer myself: The animated elements Rod01, Rod02, etc, have nothing to do with the problem.
#36
Posted 13 July 2022 - 02:59 PM
Hello!
I finally found the solution, and finally I can continue with my development.
The extra moving element in the "locomotive" model (not in the 3D cab), instead of being named ORTS_ITEM1TWOSTATE:0 as indicated by Carlo, has to be named ORTSITEM1TWOSTATE:0 (without the underscore). It then becomes controllable by pressing the corresponding keys or from the internal control of the 2D and 3D cabs.
Interestingly, if the moving element moves in rotation instead of translation, it does work with the name ORTS_ITEM1TWOSTATE:0.
It has taken me a lot of time and multiple headaches to figure this out. I do not know if it is a bug in the Monogame versions, but personally I would leave it as it is, to avoid having to change everything again, and in a future Manual, I would indicate this detail to help as much as possible to those who come after me.
Thank you!
PS: If a slower movement of the element is desired (as it is usually in reality), the second frame can be changed to 8, in a 9-frame animation. That is to say, instead of the first step being 0 and the second 1, to jump directly between 0 and 8 (1=0 2=8).
I finally found the solution, and finally I can continue with my development.
The extra moving element in the "locomotive" model (not in the 3D cab), instead of being named ORTS_ITEM1TWOSTATE:0 as indicated by Carlo, has to be named ORTSITEM1TWOSTATE:0 (without the underscore). It then becomes controllable by pressing the corresponding keys or from the internal control of the 2D and 3D cabs.
Interestingly, if the moving element moves in rotation instead of translation, it does work with the name ORTS_ITEM1TWOSTATE:0.
It has taken me a lot of time and multiple headaches to figure this out. I do not know if it is a bug in the Monogame versions, but personally I would leave it as it is, to avoid having to change everything again, and in a future Manual, I would indicate this detail to help as much as possible to those who come after me.
Thank you!
PS: If a slower movement of the element is desired (as it is usually in reality), the second frame can be changed to 8, in a 9-frame animation. That is to say, instead of the first step being 0 and the second 1, to jump directly between 0 and 8 (1=0 2=8).
#37
Posted 13 July 2022 - 04:55 PM
#38
Posted 14 July 2022 - 11:31 PM
The locomotive's animations must start with
ORTSITEM1CONTINUOUS,
ORTSITEM2CONTINUOUS,
ORTSITEM1TWOSTATE,
ORTSITEM2TWOSTATE.
The internal 3D cabview animations are named
ORTS_ITEM1CONTINUOUS,
ORTS_ITEM2CONTINUOUS,
ORTS_ITEM1TWOSTATE,
ORTS_ITEM2TWOSTATE.
There are the two cabview controls
ORTS_GENERIC_ITEM1,
ORTS_GENERIC_ITEM2,
where ORTS_GENERIC_ITEM1 may be used to animate the locomotive's animations
ORTSITEM1CONTINUOUS,
ORTSITEM1TWOSTATE,
and the internal 3D cabview animations
ORTS_ITEM1CONTINUOUS,
ORTS_ITEM1TWOSTATE,
while ORTS_GENERIC_ITEM2 may be used to animate the other two couples, that is the locomotive's animations
ORTSITEM2CONTINUOUS,
ORTSITEM2TWOSTATE,
and the internal 3D cabview animations
ORTS_ITEM2CONTINUOUS,
ORTS_ITEM2TWOSTATE.
ORTSITEM1CONTINUOUS,
ORTSITEM2CONTINUOUS,
ORTSITEM1TWOSTATE,
ORTSITEM2TWOSTATE.
The internal 3D cabview animations are named
ORTS_ITEM1CONTINUOUS,
ORTS_ITEM2CONTINUOUS,
ORTS_ITEM1TWOSTATE,
ORTS_ITEM2TWOSTATE.
There are the two cabview controls
ORTS_GENERIC_ITEM1,
ORTS_GENERIC_ITEM2,
where ORTS_GENERIC_ITEM1 may be used to animate the locomotive's animations
ORTSITEM1CONTINUOUS,
ORTSITEM1TWOSTATE,
and the internal 3D cabview animations
ORTS_ITEM1CONTINUOUS,
ORTS_ITEM1TWOSTATE,
while ORTS_GENERIC_ITEM2 may be used to animate the other two couples, that is the locomotive's animations
ORTSITEM2CONTINUOUS,
ORTSITEM2TWOSTATE,
and the internal 3D cabview animations
ORTS_ITEM2CONTINUOUS,
ORTS_ITEM2TWOSTATE.
#39
Posted 16 July 2022 - 10:19 AM
Csantucci, on 14 July 2022 - 11:31 PM, said:
The locomotive's animations must start with
ORTSITEM1CONTINUOUS,
ORTSITEM2CONTINUOUS,
ORTSITEM1TWOSTATE,
ORTSITEM2TWOSTATE.
The internal 3D cabview animations are named
ORTS_ITEM1CONTINUOUS,
ORTS_ITEM2CONTINUOUS,
ORTS_ITEM1TWOSTATE,
ORTS_ITEM2TWOSTATE.
There are the two cabview controls
ORTS_GENERIC_ITEM1,
ORTS_GENERIC_ITEM2,
where ORTS_GENERIC_ITEM1 may be used to animate the locomotive's animations
ORTSITEM1CONTINUOUS,
ORTSITEM1TWOSTATE,
and the internal 3D cabview animations
ORTS_ITEM1CONTINUOUS,
ORTS_ITEM1TWOSTATE,
while ORTS_GENERIC_ITEM2 may be used to animate the other two couples, that is the locomotive's animations
ORTSITEM2CONTINUOUS,
ORTSITEM2TWOSTATE,
and the internal 3D cabview animations
ORTS_ITEM2CONTINUOUS,
ORTS_ITEM2TWOSTATE.
ORTSITEM1CONTINUOUS,
ORTSITEM2CONTINUOUS,
ORTSITEM1TWOSTATE,
ORTSITEM2TWOSTATE.
The internal 3D cabview animations are named
ORTS_ITEM1CONTINUOUS,
ORTS_ITEM2CONTINUOUS,
ORTS_ITEM1TWOSTATE,
ORTS_ITEM2TWOSTATE.
There are the two cabview controls
ORTS_GENERIC_ITEM1,
ORTS_GENERIC_ITEM2,
where ORTS_GENERIC_ITEM1 may be used to animate the locomotive's animations
ORTSITEM1CONTINUOUS,
ORTSITEM1TWOSTATE,
and the internal 3D cabview animations
ORTS_ITEM1CONTINUOUS,
ORTS_ITEM1TWOSTATE,
while ORTS_GENERIC_ITEM2 may be used to animate the other two couples, that is the locomotive's animations
ORTSITEM2CONTINUOUS,
ORTSITEM2TWOSTATE,
and the internal 3D cabview animations
ORTS_ITEM2CONTINUOUS,
ORTS_ITEM2TWOSTATE.
Thank you Carlo!
#40
Posted 01 April 2023 - 02:52 PM
Hello!
I have made several tests to try to animate, in the 3d cab I am building, in addition to the side windows, a fan, which would be controlled from a switch from the control desk.
But it does not work. The fan itself is called: ORTS_ITEM1CONTINUOUS:1
And the switch that would control it:
ORTS_GENERIC_ITEM1:1
However, the switch does not move. The fan does rotate continuously because I repeat, in the cab there are two side windows named:
ORTS_ITEM1TWOSTATE:0 for the right window and its corresponding switch ORTS_GENERIC_ITEM1:0 and ORTS_ITEM2TWOSTATE:0 and ORTS_GENERIC_ITEM2:0 for the left window.
The windows work correctly, with their sound. The problem is that when activating the right window, the fan spins. Although at a ridiculous speed. I have tried to modify the .sd file showing the following aspect of the code, with no changes:

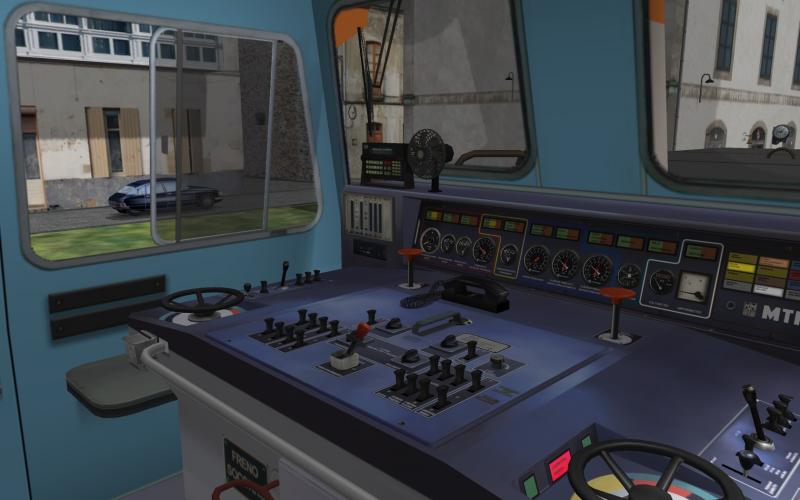

But I don't notice any difference in terms of the rotational speed of its fan blades either. I am attaching a picture of the cockpit with the left window open for illustrative purposes, to better understand what I mean. In fact, in the cabin there should be 2 fans, each controlled by its own switch, and of course, these fans should be totally independent of the operation of the windows:
I don't know if it is possible to do this or at the moment the generic controllers are limited to only two. Thanks for the answers!
I have made several tests to try to animate, in the 3d cab I am building, in addition to the side windows, a fan, which would be controlled from a switch from the control desk.
But it does not work. The fan itself is called: ORTS_ITEM1CONTINUOUS:1
And the switch that would control it:
ORTS_GENERIC_ITEM1:1
However, the switch does not move. The fan does rotate continuously because I repeat, in the cab there are two side windows named:
ORTS_ITEM1TWOSTATE:0 for the right window and its corresponding switch ORTS_GENERIC_ITEM1:0 and ORTS_ITEM2TWOSTATE:0 and ORTS_GENERIC_ITEM2:0 for the left window.
The windows work correctly, with their sound. The problem is that when activating the right window, the fan spins. Although at a ridiculous speed. I have tried to modify the .sd file showing the following aspect of the code, with no changes:
SIMISA@@@@@@@@@@JINX0t1t______ Shape ( Cab3d309001.s ESD_Detail_Level ( 0 ) ESD_Alternative_Texture ( 0 ) ESD_CustomAnimationSpeed ( 16 ) )
But I don't notice any difference in terms of the rotational speed of its fan blades either. I am attaching a picture of the cockpit with the left window open for illustrative purposes, to better understand what I mean. In fact, in the cabin there should be 2 fans, each controlled by its own switch, and of course, these fans should be totally independent of the operation of the windows:
I don't know if it is possible to do this or at the moment the generic controllers are limited to only two. Thanks for the answers!
