Missing from the Manual Open Rails secrets revealed Rate Topic: ***** 1 Votes

#91 User is offline   steamer_ctn

  • Open Rails Developer
  • Group: Status: Elite Member
  • Posts: 1,574
  • Joined: 24-June 11
  • Gender:Male
  • Country:

Posted 05 September 2021 - 03:00 PM

View Postcjakeman, on 05 September 2021 - 10:13 AM, said:

What does "(absolute)" indicate?

I'm thinking that the Manual should describe both:

  • boiler water level
  • boiler water glass
Absolute is the total amount of water that is contained in the boiler. So for example, for a NSWGR D57 locomotive it might have been about 3500 imp gals.

The water glass gauge fitted to the D57 was 8" and showed the water level between 2950 and 3500 imp gals.

Hence the fireman was supposed to maintain water in the boiler between these two points. Thus in this case, the water level should have been managed between approx 84 and 100% absolute (or 0 and 100% gauge).

However for some reason the current OR code seems to operate the gauge between 70 - 100% absolute.

#92 User is offline   cjakeman

  • Vice President
  • PipPipPipPipPipPipPipPip
  • Group: ET Admin
  • Posts: 2,349
  • Joined: 03-May 11
  • Gender:Male
  • Location:Peterborough, UK
  • Simulator:Open Rails
  • Country:

Posted 06 September 2021 - 11:11 AM

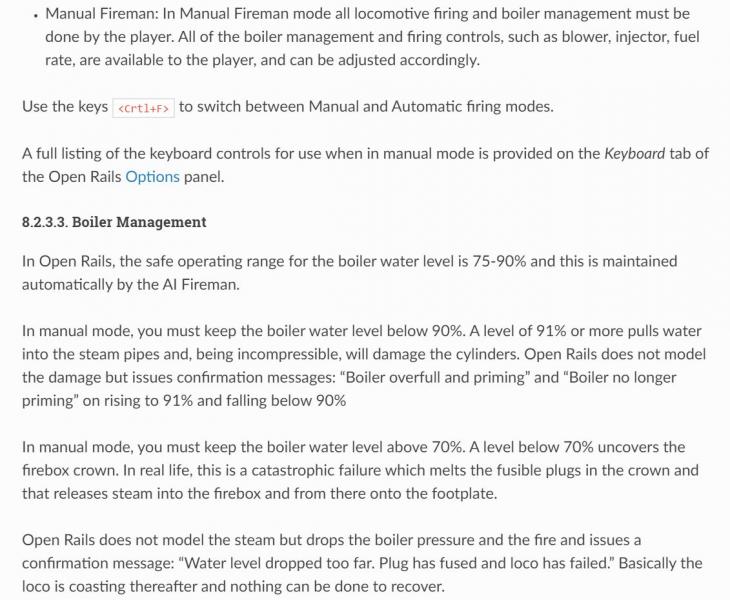

How about this text as a new section for the Manual entitled Boiler Management:

Attached Image: 2021-09-06 20_01_13-Preview physics.rst - openrails - Visual Studio Code.jpg

Is this appropriate?


View Poststeamer_ctn, on 05 September 2021 - 03:00 PM, said:

However for some reason the current OR code seems to operate the gauge between 70 - 100% absolute.


I am very puzzled by the indication in the HUD (and Train Driving Info window) for the Boiler Water Glass. If I have time, I will debug the code to see what it is doing.

#93 User is offline   Weter

  • Superintendant
  • Group: Status: Elite Member
  • Posts: 1,927
  • Joined: 01-June 20
  • Gender:Not Telling
  • Simulator:ORTS
  • Country:

Posted 06 September 2021 - 06:11 PM

...and IT, being incompressible...
I suppose, "it" is missing.

#94 User is offline   steamer_ctn

  • Open Rails Developer
  • Group: Status: Elite Member
  • Posts: 1,574
  • Joined: 24-June 11
  • Gender:Male
  • Country:

Posted 06 September 2021 - 06:44 PM

View Postcjakeman, on 06 September 2021 - 11:11 AM, said:

How about this text as a new section for the Manual entitled Boiler Management:

Is this appropriate?

If you are going to quote actual values (ie 70%, etc) I would suggest that it needs to be made clear whether they are gauge or absolute values.

View Postcjakeman, on 06 September 2021 - 11:11 AM, said:

I am very puzzled by the indication in the HUD (and Train Driving Info window) for the Boiler Water Glass. If I have time, I will debug the code to see what it is doing.

You could try changing the following line from:

waterGlassPercent = (WaterFraction - WaterMinLevel) / (WaterMaxLevel - WaterMinLevel);


to

waterGlassPercent = WaterGlassLevelIN / WaterGlassLengthIN;


#95 User is offline   Weter

  • Superintendant
  • Group: Status: Elite Member
  • Posts: 1,927
  • Joined: 01-June 20
  • Gender:Not Telling
  • Simulator:ORTS
  • Country:

Posted 12 September 2021 - 12:38 AM

Quote

11.4.7.4. Station Commands
... They are inserted directly after the station name in the first column.

But what may be a bit more nice-to insert them at next (second) blank column.

$nohold is actually Train command, canceling $hold for given train.
But at 11.4.7.5. Timing Commands nothing said about that, exept all three commands are similar to respective station commands.
Hence, $nohold is currently not explained atall.
Here is similar form, as missing:

Quote

$waitsignal
Can be used to override and negate a $nowaitsignal station command for the current train.

Quote

$nowaitsignal
Normally, if a train is stopped at a station and the next signal ahead is still at danger, the train will not depart. But, there are situations where this should be overruled.

Should be added something like: "(next signal)that belongs to the same node as platform marker"

#96 User is offline   Weter

  • Superintendant
  • Group: Status: Elite Member
  • Posts: 1,927
  • Joined: 01-June 20
  • Gender:Not Telling
  • Simulator:ORTS
  • Country:

Posted 22 October 2021 - 11:44 PM

I suppose, the latter two phrases of this post are worth to be added to paragraph 11.4.6 of the official Manual.

#97 User is offline   darwins

  • Engineer
  • Group: Status: Active Member
  • Posts: 610
  • Joined: 25-September 17
  • Gender:Male
  • Simulator:Open Rails
  • Country:

Posted 05 December 2021 - 11:22 AM

ORTSBearingType ( x ) mentions Friction, Roller and Low. It should also include "Grease" which has a higher resistance than regular friction bearings lubricated with oil. Mostly used on very old stock, but continued on some private owner goods wagons in UK into 1930s.
