ENG/WAG Values - The Definitive List ? Rate Topic: -----

#11 User is offline   darwins

  • Superintendant
  • Group: Posts: Elite Member
  • Posts: 1,550
  • Joined: 25-September 17
  • Gender:Male
  • Simulator:Open Rails
  • Country:

Posted 19 November 2019 - 04:31 AM

Quote

Hi Peter,

You've certainly championed this cause more than anyone I know - your site is an absolute gem - there is so much useful information there (not to mention all the specific value calculators) - I don't know how I would create a physics file without it... I've only been hitting it heavy for the last year or so - after I realized how much it contained - but I still find something new every time I visit... Thanks for doing it - seriously...

Got to agree with that.

Also think that more of the stuff that Peter has put together should find its way into the official OR User's Manual - unless there is a thought to split that up more for different kinds of users and have a more detailed manual for physics, another for timetables and activities and another for route building.


#12 User is offline   R H Steele

  • Executive Vice President
  • Group: Status: R.I.P. or just Retired
  • Posts: 3,562
  • Joined: 14-March 13
  • Gender:Male
  • Location:known universe
  • Simulator:Open Rails
  • Country:

Posted 19 November 2019 - 11:39 AM

View Postscottb613, on 19 November 2019 - 03:49 AM, said:

I was hoping you would pipe in here Gerry - I know you've made a herculean effort on getting the diesel physics worked out - and that's an area where I know very little...
Regards,
Scott

Thank you, but I'm obliged to add...Maybe i get some credit for the work of wrangling all the data into the proper formats, but without the patience, knowledge, experience, and assistance of people like Bob Boudoin, Derek Morton, Dave Nelson, Peter Newell, Joe Realmuto, and sooo many others, I would not have been able to do any of it. By the way, I consider it fun, and am enjoying every minute of it.
We are all working towards the same goal.
...and about Peter's web site....a gem, a treasure, and invaluable resource.


#13 User is offline   Genma Saotome

  • Owner Emeritus and Admin
  • PipPipPipPipPipPipPipPipPipPipPipPipPip
  • Group: ET Admin Group
  • Posts: 15,657
  • Joined: 11-January 04
  • Gender:Male
  • Location:United States
  • Simulator:Open Rails
  • Country:

Posted 19 November 2019 - 01:05 PM

I've implemented all of the suggestions posted above as syntax in my editor (Emeditor pro) for .con and .inc files. Note, my eye's have been "failing" (I'll probably have corneal transplant surgery in December) and so as my own visual aid I've set the font to be pretty "loud".

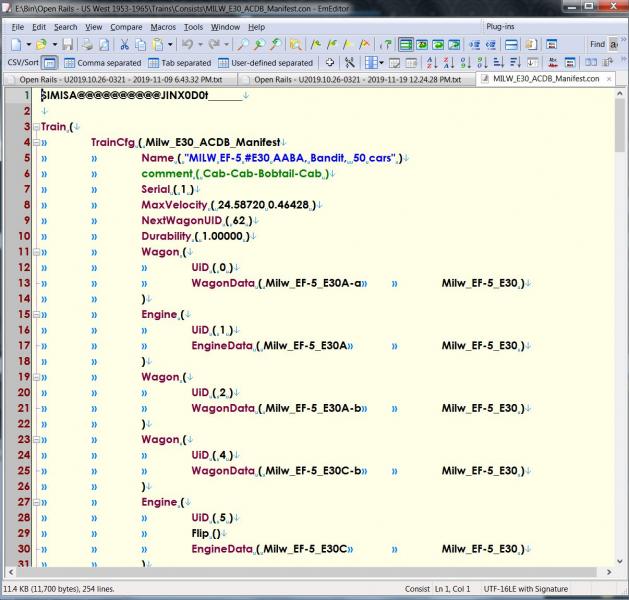

A .con file:

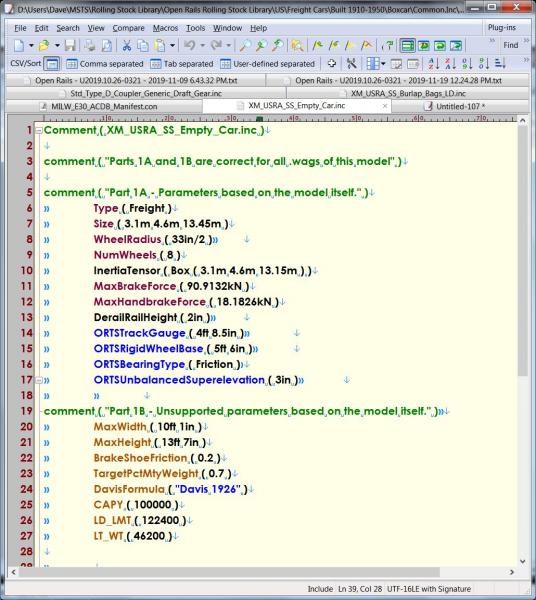

Attached Image: Clipboard01-con.jpg

I see that the reserved word "Flip" isn't in the list.


My empty_car,inc for Tim Muir's USRA SS boxcars:
Attached Image: Clipboard02-inc.jpg

As you can see I've chosen to apply specific colors to different strings - purple for MSTS parameters, blue for OR, brown for parameters not in OR which probably should be. What remains in black is a parameter name not in either list. That might be an omission for the posted list in this thread... or it could signify an old MSTS parameter that is no longer in use. THAT is useful.

I could have set the display to color code the whole line following the keyword, or defined the keyword to include the left parenthesis but I think it is better to leave the data values in black. I could assign a color to both parenthesis and I will give that a trial.

Thanks Scott for showing the way forward on this, I think it will be a big help to me.

#14 User is offline   conductorchris

  • Vice President
  • Group: Status: First Class
  • Posts: 2,351
  • Joined: 24-March 10
  • Gender:Male
  • Simulator:Open Rails - MSTS
  • Country:

Posted 20 November 2019 - 04:22 AM

For collaboration: maybe google docs? (sheets)

#15 User is offline   scottb613

  • Executive Vice President
  • Group: Status: First Class
  • Posts: 3,187
  • Joined: 06-July 09
  • Gender:Male
  • Location:Downeast Maine (soon)
  • Simulator:ORTS
  • Country:

Posted 20 November 2019 - 04:42 AM

Hi Dave,

Hah - EXACTLY...

Happy to help...

Sorry about your eyes and yes - that's certainly a high visibility color scheme you have there...

I've been going through various ENG/WAG files and it's interesting to note what stands out...

It might actually help for people in the know to do similar - to help us separate the wheat from the chaff on our current mission...

So - I'm not familiar with your editor - but if folks want to try a Free Open Source editor - Notepad++ is practically an industry standard for editing text files...

Download Here:
Notepad++


Updated Spreadsheet and Notepad++ Config Files:
Attached File  ORTS Params.zip (101.98K)
Number of downloads: 603


So in my attachment I included two files for "Notepad++" - the ORTS Syntax Language [SCO_ORTS_LANG.xml] - a work in progress - and a matching Style [SCO_ORTS.xml]…

After you load Notepad++ - simply copy [SCO_ORTS.xml] into your "AppData" directory (might be hidden by default) for Notepad++ themes… You should see bunch of other themes in XML format residing there....


Example AppData:
C:\Users\[your user name here]\AppData\Roaming\Notepad++\themes


Next - you can place [SCO_ORTS_LANG.xml] anywhere - as we need to "Import" it - just put it somewhere easy to find...


  • Start Notepad++
  • Click on the menu item for [Language] [Define Your Language]
  • Click on the [Import] button and then find the file [SCO_ORTS_LANG.xml] to import it
  • That should complete import - now anytime you open an ENG/WAG/INC file - it should use that language file



One final step...


  • Select [Settings] [Style Configurator]
  • There's a dropdown called [Select Theme] - click on that
  • Now if you placed [SCO_ORTS.xml] in the correct location - you should see [SCO_ORTS] as a style listed - just select that



Done...


Now when you open an ENG/WAG/INC - it should look like the following - green is MSTS - yellow is ORTS - magenta is valid keyword arguments... If the line of text is white - there's a chance it is no longer used - such as the white lines in my example...

NOTE - WARNING - DANGER - our lists are not complete and we have much more work to do - DANGER - WARNING - NOTE



Attached Image: Capture.JPG



Regards,
Scott

#16 User is offline   steamer_ctn

  • Open Rails Developer
  • Group: Posts: Elite Member
  • Posts: 1,980
  • Joined: 24-June 11
  • Gender:Male
  • Country:

Posted 20 November 2019 - 10:42 AM

While you are talking about ENG/WAG files, I would strongly recommend that you also consider formatting in a consistent way with section headings as described on this page.

This will make the files more readable and easier to check by others, and also act as check list to identify any "missing" items. The order in which some parameters are read can also be important.

#17 User is offline   Genma Saotome

  • Owner Emeritus and Admin
  • PipPipPipPipPipPipPipPipPipPipPipPipPip
  • Group: ET Admin Group
  • Posts: 15,657
  • Joined: 11-January 04
  • Gender:Male
  • Location:United States
  • Simulator:Open Rails
  • Country:

Posted 21 November 2019 - 12:03 PM

Here are several that are not in the above lists. I would imagine most are still in use and original to MSTS, but are there any that are obsolete? Which ones were added by the OR Team?

About brakes:
EmergencyBrakeResMaxPressure( 90 )
DerailRailForce ( 109.0903kN )
DerailBufferForce ( 380.1582kN )

About couplers:
Stiffness ( 0 5e6N/m )
Damping ( 2e6N/m/s 2e6N/m/s )
Centre()
Velocity ( 0.2m/s )

About the car or locomotive itself:
InertiaTensor ( Box ( 3.1m 4.6m 13.15m ) )
Adheasion ( 0.17 0.35 1.8 0 )
DieselEngineSpeedOfMaxTractiveEffort( 11mph )
EngineVariables( 1200 )


Most everything about diesel locomotive braking.

EngineBrakesControllerEmergencyApplicationRate( 8 )
EngineBrakesControllerEmergencyBrakeTimePenalty( 60 )
EngineBrakesControllerFullServicePressureDrop( 26 )
EngineBrakesControllerHasProportionalBrake( 1 )
EngineBrakesControllerMaxApplicationRate( 6 )
EngineBrakesControllerMaxReleaseRate( 14 )
EngineBrakesControllerMaxSystemPressure( 90 )
EngineBrakesControllerMinPressureReduction( 6 )
EngineBrakesControllerMinSystemPressure( 15 )
EngineBrakesProportionalBrakeLag( 0.9 )
DynamicBrakeHasAutoBailOff ( 0 )
DynamicBrakesCutInSpeed( 5 )
DynamicBrakesDelayTimeBeforeEngaging ( 10 )
DynamicBrakesEffectAtMaximumFadeOut( 0 )
DynamicBrakesFadingSpeed( 17 )
DynamicBrakesHigherSpeedCurveExponent( 9.2 )
DynamicBrakesLowerSpeedCurveExponent( 1.55 )
DynamicBrakesMaxAirBrakePressure ( 50 )
DynamicBrakesMaximumEffectiveSpeed( 23 )
DynamicBrakesMaximumForce( 115.5kN )
DynamicBrakesMaximumSpeedForFadeOut ( 325 )
DynamicBrakesMinUsableSpeed( 3.0 )
DynamicBrakesNumberOfControllerNotches( 1 )
DynamicBrakesResistorCurrentLimit ( 600 )
TrainBrakesControllerEmergencyBrakeTimePenalty( 60 )
TrainBrakesControllerMinSystemPressure( 15 )
BrakesEngineBrakeType ( "Air_single_pipe" )
BrakesTrainBrakeType ( "Air_single_pipe" )
BrakesEngineControllers( "Independent, Train, Dynamic" )
EngineBrakesControllerDirectControlExponent( 1 )
AirBrakesAirCompressorPowerRating( 3.85 )
AirBrakesAirCompressorWattage( 12000 )
AirBrakesAirUsedPerPoundsOfBrakePipePressure( 1.4 )
AirBrakesIsCompressorElectricOrMechanical( 1 )
AirBrakesMainMinResAirPressure( 14.7 )
Brake_Dynamic
AWS
DoesHornTriggerBell( 0 )

Monitors

EmergencyStopMonitor(
MonitoringDeviceMonitorTimeLimit( 0 )
MonitoringDeviceAlarmTimeLimit( 0 )
MonitoringDevicePenaltyTimeLimit( 0 )
MonitoringDeviceCriticalLevel( 0 )
MonitoringDeviceResetLevel( 0 )
MonitoringDeviceAppliesFullBrake( 0 )
MonitoringDeviceAppliesEmergencyBrake( 1 )
MonitoringDeviceAppliesCutsPower( 0 )
MonitoringDeviceAppliesShutsDownEngine( 0 )
)

AWSMonitor(
MonitoringDeviceMonitorTimeLimit( -1 )
MonitoringDeviceAlarmTimeLimit( 5 )
MonitoringDevicePenaltyTimeLimit( 0 )
MonitoringDeviceCriticalLevel( 0 )
MonitoringDeviceResetLevel( 0 )
MonitoringDeviceAppliesFullBrake( 0 )
MonitoringDeviceAppliesEmergencyBrake( 1 )
MonitoringDeviceAppliesCutsPower( 0 )
MonitoringDeviceAppliesShutsDownEngine( 0 )
)

#18 User is offline   scottb613

  • Executive Vice President
  • Group: Status: First Class
  • Posts: 3,187
  • Joined: 06-July 09
  • Gender:Male
  • Location:Downeast Maine (soon)
  • Simulator:ORTS
  • Country:

Posted 22 November 2019 - 03:49 AM

Hi Dave,

Thanks...

Exactly what we need - yeah - and here is where we can illustrate the "hocus pocus" part of the problem....

I didn't think any of the derail values applied in ORTS
  • DerailRailForce ( 109.0903kN )
  • DerailBufferForce ( 380.1582kN )


Same for these values for couplers (important to note only one set of couplers are used in ORTS):
  • Stiffness ( 0 5e6N/m )
  • Damping ( 2e6N/m/s 2e6N/m/s )
  • Centre()
  • Velocity ( 0.2m/s )


And the Inertia Tensor:
  • InertiaTensor ( Box ( 3.1m 4.6m 13.15m ) )


I know Peter updated Basic Couplers to Advanced Couplers - but I'm really not sure how they differ that much from Basic Couplers - the "Size" of the shape controlled the car spacing and the "r0" controlled the slack in "Basic"...

Regards,
Scott

#19 User is offline   Lamplighter

  • Fireman
  • Group: Posts: Active Member
  • Posts: 178
  • Joined: 24-January 18
  • Gender:Male
  • Simulator:Open Rails
  • Country:

Posted 22 November 2019 - 04:32 AM

Hi everyone,
I took a job and commented on the parameters. Comments describe how to get values.
I also have examples of values ​​there.
So far only the "Wagon" section
Unfortunately I wrote it for the Czech OR community and it is in Czech language.
The tutorial is part of my website where I offer settings for .wag and .eng for OR.

#20 User is offline   scottb613

  • Executive Vice President
  • Group: Status: First Class
  • Posts: 3,187
  • Joined: 06-July 09
  • Gender:Male
  • Location:Downeast Maine (soon)
  • Simulator:ORTS
  • Country:

Posted 22 November 2019 - 07:17 AM

View PostLamplighter, on 22 November 2019 - 04:32 AM, said:

Hi everyone,
I took a job and commented on the parameters. Comments describe how to get values.
I also have examples of values ​​there.
So far only the "Wagon" section
Unfortunately I wrote it for the Czech OR community and it is in Czech language.
The tutorial is part of my website where I offer settings for .wag and .eng for OR.


Hi...

Thanks - I'll take a look as soon as I am able...

Regards,
Scott

#21 User is offline   Lamplighter

  • Fireman
  • Group: Posts: Active Member
  • Posts: 178
  • Joined: 24-January 18
  • Gender:Male
  • Simulator:Open Rails
  • Country:

Posted 22 November 2019 - 08:30 AM

My discussion post was intended as an inspiration for a similar Open Rails parameters guide.
Of course in English - international.
Its advantage would be the possibility of a broad discussion about the parameters and their values in the conditions of various railway authorities and technologies.

#22 User is offline   BillC

  • Conductor
  • Group: Private - Open Rails Developer
  • Posts: 323
  • Joined: 31-May 11
  • Gender:Male
  • Country:

Posted 22 November 2019 - 12:16 PM

[quote name='Genma Saotome' timestamp='1574197549' post='252870']
I've implemented all of the suggestions posted above as syntax in my editor (Emeditor pro) for .con and .inc files. Note, my eye's have been "failing" (I'll probably have corneal transplant surgery in December) and so as my own visual aid I've set the font to be pretty "loud".


Dave,
Good luck with your eye surgery. I had surgery for a detached retina in June. As your proballey aware any eye surgery may not be 100% successful. In my case the success rate was 85%, and was successful. May the odds be with you.

As noted above to have a comprehensive list via google docs. I would suggest using Github to have an up to date list from various sources. When done in plain text, other tools can be used to format for Word, PDF, etc.

#23 User is offline   Genma Saotome

  • Owner Emeritus and Admin
  • PipPipPipPipPipPipPipPipPipPipPipPipPip
  • Group: ET Admin Group
  • Posts: 15,657
  • Joined: 11-January 04
  • Gender:Male
  • Location:United States
  • Simulator:Open Rails
  • Country:

Posted 22 November 2019 - 02:27 PM

View PostBillC, on 22 November 2019 - 12:16 PM, said:


Dave,
Good luck with your eye surgery.


Thanks. The Dr first proposed a procedure to smooth the surface of my cornea, quite safe, not much chance of complications but by the end of my appt. had come around to corneal replacement which is riskier but produces better results. He said it requires use of something akin to a tiny apple core-er to cut out a disk at the center of one's cornea followed by dropping in a replacement obtained from a deceased donor. Stitches, chance of infection, chance of rejection (at any time), better vision. It'll occur on Dec 31.

I have three problems: very dry eyes will eventually has caused the surface of the cornea to look like tiny ball peen hammers have pelted the whole surface leaving too-deep-for-tears to fill evenly (as they normally do with any surface irregularity), so your visual acuity goes to hell in a hand basket. Fuchs corneal distrophy which is the death of a single layer of cells below the cornea. Their job it is to wick away moisture. When they don't the bottom of the cornea will become scared. And age related cataracts are starting to appear which changes perception of color. Three problems, three different effects upon vision. The Fuchs proceeds very slowly so I might not ever have to deal with that but the other two are a problem now.

#24 User is offline   steamer_ctn

  • Open Rails Developer
  • Group: Posts: Elite Member
  • Posts: 1,980
  • Joined: 24-June 11
  • Gender:Male
  • Country:

Posted 22 November 2019 - 09:28 PM

View Postscottb613, on 22 November 2019 - 03:49 AM, said:

I know Peter updated Basic Couplers to Advanced Couplers - but I'm really not sure how they differ that much from Basic Couplers - the "Size" of the shape controlled the car spacing and the "r0" controlled the slack in "Basic"...

This feature is not considered "user ready" at the moment so it shouldn't be allowed for at this time.

#25 User is offline   Aldarion

  • Engineer
  • PipPipPipPipPip
  • Group: ET Owner Group
  • Posts: 663
  • Joined: 11-February 13
  • Gender:Male
  • Location:Lisbon, Portugal
  • Simulator:Open Rails
  • Country:

Posted 11 January 2020 - 04:00 AM

Hi, every one.

For the last months, since I've paused my development of Portuguese routes I've been going around Peter's site "Coals to Newcastle" (thank you so much for all your work Peter) and trying to definitely upgrade all my old MSTS eng and wag files to current ORTS standards.

Right now I'm focusing on two diesel locomotives - an Alco CP1500, very similar to an Alco RSC3, and a EE CP1800, mechanically similar to a Class 47 although on the outside it resembles a class 50.

My main difficulties so far are with traction curve calculations and the lack of a definitive list of parameters. It always seems to me that I find a new parameter every time I get on the subject.
With this said, I would like to help with the work you guys are doing here.

I'd like to share with you the work I've done with the CP1800 - in 2018 I've changed some insights with darwins concerning vacuum airbrakes and exhausters but unfortunately I've had to stop on that since the only CP1800 remaining in Portugal is not accessible to me to search for exhaust model number. Anyways, here's a link for a zipped file on my CP1800 pack. Mind that in the root folder there are MSTS only eng files and the ORTS ones are in the OpenRails subfolder along with the include files I use for the locomotive.

CP1800 rar file

  • 6 Pages +
  • 1
  • 2
  • 3
  • Last »
  • You cannot start a new topic
  • You cannot reply to this topic

2 User(s) are reading this topic
0 members, 2 guests, 0 anonymous users
