[steamer_ctn]

xavivilla, on 04 September 2019 - 10:08 AM, said:

I am trying to smoke a van with a steam boiler for heating and the effects 'HeatingSteamBoilerFX' and 'HeatingHoseFX' show nothing.

Is the rolling stock configured to allow steam heating to work?

See this page for more information.

If this is a diesel or a van, then I would need to check the code to see how it works.

[Lamplighter]

I can confirm that SpecialEffect functions (eg HeatingHoseFX, WagonSmokeFX, etc.) do not really work with OR MonoGame. Not even with the new merged version.

[xavivilla]

steamer_ctn, on 04 September 2019 - 12:50 PM, said:

Is the rolling stock configured to allow steam heating to work?

See this page for more information.

If this is a diesel or a van, then I would need to check the code to see how it works.

I think we don understand each other. I try to put the Visual Effects described here in a wagon, in my case a Carriage where the head of the train is, the postal service and the heating boiler that supplies steam to the rest of Carriages. The locomotive can be a diesel or an electric one, depending on the area of ​​the route.

I attached the wag file of the Carriage in case you want to see it.

Attached File(s)

•  RNDDT8043-FServ.txt (12.58K)
  Number of downloads: 503

[steamer_ctn]

Lamplighter, on 05 September 2019 - 12:10 AM, said:

I can confirm that SpecialEffect functions (eg HeatingHoseFX, WagonSmokeFX, etc.) do not really work with OR MonoGame. Not even with the new merged version.

I have tested these in the latest unstable version, and both of these appear to work correctly (As the MG version is a derivative of the mainstream version - similar to the unstable version, I would expect the MG version will work).

I would suggest trying the unstable version first to confirm that the stock has been correctly set up, and then try the same stock in MG version.

It should be noted that the steam leaks associated with HeatingHoseFX will only appear when the steam heating is turned on from the locomotive - Alt-U and Alt-D. Also note that the locomotive has to be set up for steam heating.

xavivilla, on 05 September 2019 - 03:59 AM, said:

I think we don understand each other. I try to put the Visual Effects described here in a wagon, in my case a Carriage where the head of the train is, the postal service and the heating boiler that supplies steam to the rest of Carriages. The locomotive can be a diesel or an electric one, depending on the area of ​​the route.

This was also tested in the Unstable version, and works ok if the steam generator is located in a locomotive fitted with steam heating capability.

As also suggested above it does not currently work where the generator is located in a wagon instead of the locomotive.

This will require a code change and I will have a look at it in the foreseeable future.

I hope to set up a tutorial in the near future to demonstrate these features, and allow testing of the functionality.

Thanks

[xavivilla]

Thanks for everything Peter. We will wait for that code update and the tutorial. :hi:

[steamer_ctn]

I have now created a demonstration activity that shows how some of the visual effects work for wagons.

This activity can be downloaded from this page, and uses either the MG or Unstable version of OR.

[darwins]

Steam heating features have now been further updated. Having read through this thread the new additions cover most of the things that have been discussed.


There are now additional visual effects and vehicles can be set up to have appropriate steam consumption.


Steam generators can now be added to diesel and electric locomotives. It is also possible to set up steam generator vans such as the "Cocotte-Minute" fourgons-chaudière.


Diesel and electric locomotive boiler water tanks can be replenished from water columns if needed. (For those of you that like class 40s and Deltics, refill from water troughs can also be set up!)

In addition to heating for coaching stock, it is also possible to add steam heating for goods wagons such as banana vans.


A description of the features now available is given on the Coals to Newcastle website.

There is also a demonstration activity there.

There is no "blowing off" from steam generators though - but then in recent versions of OR you rarely see steam locos blowing off except when you are the fireman.

With regard to using steam for air conditioning in the summer months - in order to get the steam effects and steam consumption you would need to set the car thermostat to a temperature above ambient.

[Traindude]

darwins, on 28 May 2020 - 12:37 PM, said:

With regard to using steam for air conditioning in the summer months - in order to get the steam effects and steam consumption you would need to set the car thermostat to a temperature above ambient.

Refresh my memory, is this "thermostat" functionality you speak of currently available for heating? Meaning that when the cars are hot enough, the steam for heating to that car is shut off, thereby decreasing the overall steam usage? I'm confused.

Let's also not forget that steam was needed for hot water in the coach restrooms, dining car kitchen and sleeping car shower facilities (on cars so equipped). it may seem a little pointless but in the real world, steam was needed regardless of the season...

[darwins]

The thermostat is a new function available in the latest unstable versions:

ORTSHeatingCompartmentTemperatureSet ( 16 )

The amount of steam needed to provide hot water in lavatories would be fairly small. If you turn out the steam heating then even if the ambient temperature is above thermostat temperature for the car there is still a minimal steam usage which will adequately represent this.

The concept of applying steam all year round depends on where you live and the the rules of your railway.

In UK the heating pipes were removed from the locos during the summer months and when visiting the lavatory you washed your hands with cold water. Steam from the heating system was not required by kitchen cars which were generally fuelled by gas, electricity (from dynamos and batteries), anthracite or in a few rare cases electricity from a diesel generator. The following instructions are taken from the LMS General Appendix:

https://i.imgur.com/DwK9xkK.jpg

[Traindude]

Sorry to bump this thread, but I've found some more info on the heating and air conditioning of passenger cars in the US (I apologize in advance if some of these have been posted before):

Pullman AC Controls Manual
Pullman Heating Manual
Vapor Train Heating Manual
Pullman Water Raising Sysytem

Although I think this is may be of no use to us in OR, I might suggest simulating cars equipped with ice and/or electro-mechanical air conditioning, but except for simulating the extra drag and resistance that the compressor or generator drive has on the axle, or (in the case of later cars) the under-floor diesel generators used to operate the system, I see no benefit to simulating these systems. Speaking of axle-driven generators:

Pullman Spicer Drive Manual
Pullman DC Electrical Gear Manual

[Lamplighter]

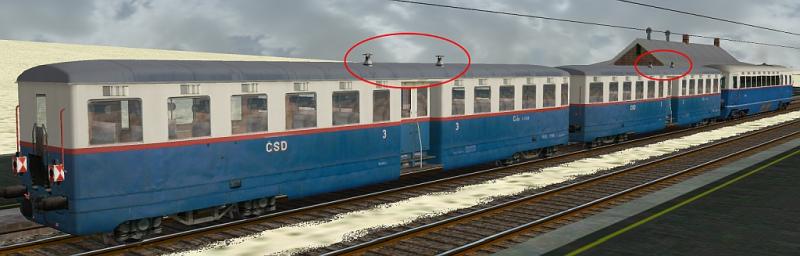

I use the WagonSmokeFX effect for old cars with stove heating. However, the effect no longer works in Open Rails 1.4 or in the test version.
In my .wag settings I have this:
Effects (
SpecialEffects (
WagonSmokeFX (
0.81 3.77 -1.59
0 1 0
0.08
)
WagonSmokeFX (
0.81 3.77 1.59
0 1 0
0.08
)
)
)

Or has the usage of this feature changed?

Attached thumbnail(s)

•

[Weter]

There was a bug, and it was corrected, so let's wait for more exact answer.
I remember, there was a thread about that somewhere over here.

[engmod]

Always post a log file of a run please.

[steved]

It works in MG126.3.

[steamer_ctn]

Lamplighter, on 14 July 2022 - 10:52 AM, said:

I use the WagonSmokeFX effect for old cars with stove heating. However, the effect no longer works in Open Rails 1.4 or in the test version.
.................................
Or has the usage of this feature changed?

As far as I can see it appears to be working in v1.4, however it may not be working in the latest unstable version (and other spin off versions, such as MG, etc).

The following suggestions are offered to assist you in doing an initial "debug" so that a developer will look into this problem.

i) Always test in the unstable version, as this is the base version that all other version spin off.

ii) Firstly test the latest unstable version with stock that you know definitely works. You can confirm that your stock works (ie, is set up correctly) by testing it in the last full release version (in this case v1.4). If you cars are not working, then try the Manual Braking stock on the CTN website stock page and see if this is working.

iii) If the stock works in v1.4 and not in the latest unstable version, then identify which version broke the feature. This can be done by downloading old versions from here, and then running the known good working wagon in it, and see when it stops working. To make it easier to identify the broken version try a method of "halving", identify when v1.4 was released, and then pick an unstable version halfway between the two, and test it. Depending on the results you can then halve either side of this point, and test again. After a number of tests it should be possible to identify which version broke the feature.

iv) Once the "broken" version is identified, we should be able to try and work out what code change caused the problem.
